Ultimate Guide: How to Design an Efficient FRP Cooling Tower for Industrial Applications

Introduction

Cooling towers are critical components in industrial systems, responsible for dissipating heat from processes ranging from power generation to HVAC. Designing an efficient FRP cooling tower requires balancing thermodynamics, material science, and environmental compliance. This guide explores key design principles, step-by-step processes, and best practices to optimize performance while leveraging the corrosion resistance and durability of Fiberglass Reinforced Plastic (FRP).

Section 1: Fundamentals of Cooling Tower Design

1.1 How Cooling Towers Work

Cooling towers transfer heat from hot water to the atmosphere through evaporative cooling:

• • Warm water is distributed over fill material.
• • Airflow evaporates a portion of the water, lowering the remaining water's temperature.
• • Cooled water is recirculated, while latent heat escapes with the vapor.

1.2 Types of Cooling Towers

Section 2: Step-by-Step FRP Cooling Tower Design Process

2.1 Define Thermal Load & Environmental Conditions

1. 1. Calculate Heat Load:
   • • Use formula:
     • • : Heat load (kW)
     • • : Water flow rate (m³/h)
     • • : Specific heat capacity of water (4.18 kJ/kg°C)
     • • : Temperature difference between inlet/outlet
2. 2. Environmental Factors:
   • • Wet-bulb temperature (critical for evaporative efficiency).
   • • Local humidity and altitude adjustments.

2.2 Material & Component Selection

• • FRP Advantages:
  • • Corrosion resistance (ideal for chemical plants).
  • • Lightweight (30% easier installation vs. steel).
  • • Customizable shapes for airflow optimization.
• • Key Components:
  • • Fill Material: High-surface-area polypropylene.
  • • Drift Eliminators: Reduce water loss to <0.005%.
  • • VFD Fans: Cut energy use by 30% with variable-frequency drives.

2.3 Structural & Spatial Planning

• • Location:
  • • Place upwind of buildings to avoid heat feedback.
  • • Maintain 2x inlet-height clearance from obstacles.
• • Noise Control:
  • • Use FRP acoustic barriers and low-speed fans (<65 dB).

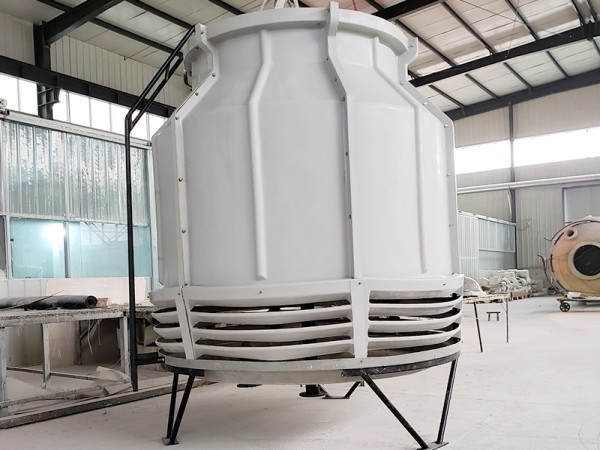

round cooling towers

Section 3: Critical Design Factors for FRP Towers

3.1 Water Quality Management

• • Prevent Scaling & Biofilms:
  • • Automated filtration + ozonation systems.
  • • Maintain 3–5 cycles of concentration.
• • FRP Compatibility:
  • • Resists chlorine and acidic water treatments.

3.2 Energy Efficiency Optimization

• • Hybrid Designs:
  • • Integrate dry sections to reduce winter evaporation.
• • Waste Heat Recovery:
  • • Redirect excess heat to preheat boiler feedwater.

3.3 Compliance & Safety Standards

• • Global Standards:
  • • China: GB/T 7190 (FRP cooling tower specs).
  • • U.S.: CTI STD-201 (thermal performance testing).
• • Freeze Protection:
  • • FRP basin heaters + reverse-flow configurations.

Section 4: Best Practices for Sustainable FRP Cooling Towers

4.1 Modular & Scalable Systems

• • Prefabricated FRP Modules:
  • • Enable easy capacity expansion (e.g., +20% cooling load).

4.2 Digital Twin & CFD Modeling

• • Simulation Tools:
  • • ANSYS Fluent for airflow/thermal pattern analysis.
  • • Identify hotspots and optimize fill distribution.

4.3 Lifecycle Cost Analysis

Section 5: Common Design Pitfalls to Avoid

1. 1. Undersized Fill Material: Causes poor heat transfer and clogging.
2. 2. Ignoring Wet-Bulb Adjustments: Leads to 15–20% underperformance.
3. 3. Poor Water Treatment: Increases FRP maintenance costs by 40%.

Conclusion

Designing an efficient FRP cooling tower requires a balance of thermal engineering, material science, and sustainability. By leveraging FRP's corrosion resistance, adopting hybrid cooling strategies, and complying with global standards, industries can achieve 20+ years of reliable service with minimal downtime. For complex projects, partner with certified FRP manufacturers like Tengxiao to ensure precision and compliance.
