A Comprehensive Guide to Cooling Tower Sizing and Selection

FRP cooling towers are essential heat transfer devices widely used in industrial production and HVAC systems. Properly sizing a cooling tower is critical to ensuring system efficiency and reliability. Below is a detailed guide on how to size a cooling tower:



Understand Key Parameters

• Heat Load: The heat load determines the cooling capacity required of the cooling tower. It can be calculated using the formula: Heat Load (BTU/Hr) = GPM × 500 × Range (T1 – T2) °F, where GPM is the water flow rate in gallons per minute, T1 is the inlet water temperature, and T2 is the outlet water temperature. The heat load is directly proportional to the cooling tower size. If other factors remain constant, a higher heat load requires a larger cooling tower.

• Flow Rate: The flow rate of the cooling tower is measured in gallons per minute (GPM). It reflects the amount of water that needs to be cooled per minute. A higher flow rate indicates a greater cooling demand.

• Cooling Range: The cooling range is the temperature difference between the inlet and outlet water of the cooling tower. A larger cooling range means the cooling tower needs to cool the water to a greater extent, requiring a larger cooling capacity.

• Approach Temperature: The approach temperature is the difference between the outlet water temperature of the cooling tower and the ambient wet bulb temperature. Lower approach temperatures require larger cooling towers. Generally, the approach should fall within 5°F to 10°F for efficient tower operation.

• Wet Bulb Temperature: The wet bulb temperature is a key parameter affected by ambient humidity and air temperature. It represents the lowest temperature to which water can be cooled through evaporation under specific atmospheric conditions. The design wet bulb temperature of the installation location is a critical factor in cooling tower selection.

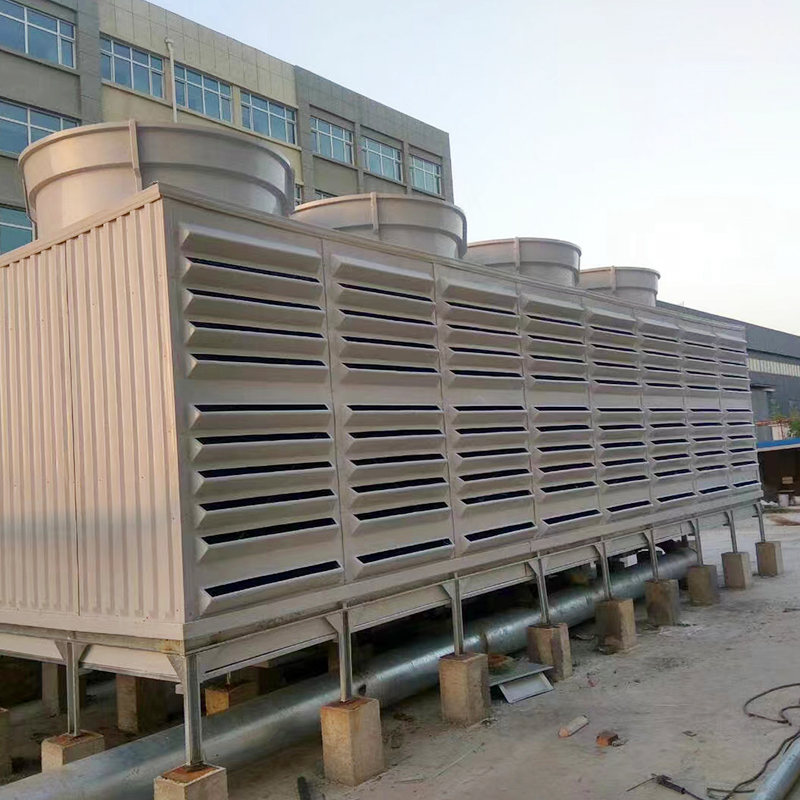

crossflow cooling tower

Steps to Size a Cooling Tower

1. Determine Design Parameters: Based on the specific application and system requirements, determine the flow rate (GPM), cooling range (T1 – T2), and design wet bulb temperature (Twb) of the cooling tower.

2. Calculate Heat Load: Use the heat load formula to calculate the cooling tower’s heat load. For example, if the flow rate is 300 GPM, the inlet water temperature is 105°F, and the outlet water temperature is 85°F, the cooling range is 20°F. The heat load would be 300 × 500 × 20 = 3,000,000 BTU/Hr.

3. Calculate Nominal Cooling Tower Tonnage: The nominal cooling tower tonnage can be calculated using the formula: Nominal Tonnage = GPM × Range / 30. Using the previous example, the nominal tonnage would be (300 × 20) / 30 = 200 tons.

4. Determine Correction Factor: Refer to the manufacturer’s “Counterflow Cooling Tower Selection and Performance Chart” to find the correction factor based on the cooling range, approach temperature, and design wet bulb temperature. For instance, if the cooling range is 20°F, the approach temperature is 9°F, and the design wet bulb temperature is 76°F, the correction factor might be 0.62.

5. Calculate Actual Required Tonnage: Multiply the nominal cooling tower tonnage by the correction factor to obtain the actual required tonnage. In the example above, the actual required tonnage would be 200 × 0.62 = 124 tons.

6. Select Cooling Tower Model: Based on the calculated actual tonnage, refer to the manufacturer’s product catalog to choose a cooling tower model with slightly higher capacity than the calculated tonnage to ensure the cooling tower meets the system’s cooling requirements.



Other Considerations

• Cooling Tower Materials: Common materials include fiberglass, stainless steel, and concrete. Fiberglass is lightweight and resistant to corrosion, making it suitable for many environments. Stainless steel offers strong corrosion resistance and durability, ideal for harsh conditions. Concrete is robust and long-lasting, typically used for large, stationary cooling towers. Material selection should consider the installation environment and water chemistry.

• Fan Options: Mechanical draft cooling towers primarily use forced draft or induced draft fans. Forced draft fans push air upward from the bottom, while induced draft fans pull air through to expel warm, humid air. Adjustable fan blades and variable-speed motors enable better airflow control, optimizing cooling tower performance and energy savings.

• Footprint and Space: Consider the available space for the cooling tower. Its size and layout must meet cooling requirements without occupying excessive space. Mechanical draft towers are suitable for compact spaces as they can be designed with multiple cells, each equipped with its own fan, improving tower design and operation efficiency.

• Water Treatment: Proper water treatment is crucial to prevent scaling, corrosion, and microbial growth in the cooling tower. Impurities in the water can affect cooling tower performance and lifespan. Implementing effective water treatment measures, such as chemical dosing and filtration, ensures efficient cooling tower operation.

• Ambient Conditions: Factors like ambient temperature, humidity, and altitude influence cooling tower performance. In regions with high temperatures or low humidity, cooling tower efficiency may decrease, requiring adjustments in sizing or performance considerations.



Below is an example of cooling tower sizing:

A manufacturing facility requires a cooling tower for process cooling. The cooling tower’s flow rate is 500 GPM, the inlet water temperature is 95°F, the outlet water temperature is 85°F, and the design wet bulb temperature of the installation location is 78°F. First, calculate the cooling range as 95°F – 85°F = 10°F. Next, calculate the heat load as 500 × 500 × 10 = 2,500,000 BTU/Hr. The nominal cooling tower tonnage is 500 × 10 / 30 ≈ 166.67 tons. Referring to the manufacturer’s selection chart, the correction factor is determined to be 0.75. The actual required cooling tower tonnage is 166.67 × 0.75 ≈ 125 tons. Based on this tonnage, a cooling tower model with slightly higher capacity is selected from the manufacturer’s product catalog.

In summary, sizing a cooling tower involves determining key parameters such as heat load, flow rate, cooling range, approach temperature, and wet bulb temperature. Using formulas and correction charts to calculate the cooling tower’s tonnage and selecting an appropriate model based on the actual tonnage. Additionally, factors like cooling tower materials, fan options, footprint, water treatment, and ambient conditions should be considered to ensure optimal cooling tower performance and longevity.
